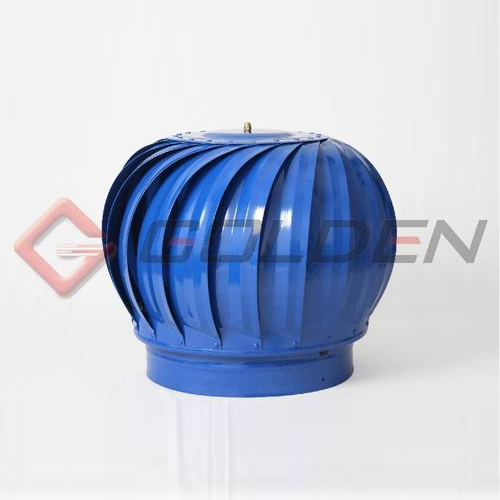

Turbine Ventilator

Turbine Ventilator
Turbine Ventilator
Product Code : GT-300 (12
Brand Name : GOLDEN TURBOVENT
Product Description

Since our inception in 1991, we are manufacturing, exporting and supplying an excellent quality of Turbine Ventilator. The offered ventilator is manufactured with the use of premium grade raw materials. Finely coated with epoxy coating powders, the provided ventilator is efficient enough in providing excellent ventilation in workplace or factories. Moreover, this Turbine Ventilator can be availed at most economic prices from us.

Key points:

  • Impact proof structure
  • Easy and smooth operations
  • Assembled with self lubricating bush
  • Longer life

TECHNICAL SPECIFICATION:-

Model

TURBOVENT GT-300

Turbine Diameter

400mm

(16 Inch)

Neck/Throat Diameter

300mm

(12 Inch)

No. of Vanes(Blades)

20 Vanes

Height

350mm

(14 Inch)

Base Ring MOC

(Mounting Ring)

Stainless Steel 430

Top Plate MOC

Aluminium 1.2 mm Thickness

Alloy 8011 H2

Vanes MOC

Aluminium 0.5mm Thickness

Alloy 8011 H2

Rotation

Twin Sealed 6200ZZ bearings and self lubricating bush of Polyamide 66 resin  to ensure frictionless rotation even at lowest wind velocity

Center Shaft

Stainless Steel 10mm

Inner Arms

PP 101 (Plastic)

Outer Arms

Stainless Steel

Nett. Weight

1.8 Kgs (Approx.)

Gross Weight

3 Kgs (Approx.)

Packing

ASSEMBLED

5 ply seaworthy corrugated box               size 410x410x370mm

Qty in 20 ft. container

Qty in 40 ft.

container

40 ft. HC

container

420 Nos

870 Nos

1015 Nos

 Note : Golden Engineering Co. Pvt. Ltd. Reserves the right to make changes owing to regular product development

*Powder Coating is done with Epoxy Polyester Powders for excellent corrosion resistance.

  EXHAUST CAPACITY :-

Wind Velocity



TURBOVENT GT-450

Exhaust capacity

Litres/Second

CFM

04 Kmh

350

740 CFM

08 Kmh

460

970 CFM

12 Kmh

750

1590 CFM

18 Kmh

1040

2200 CFM

24 Kmh

1325



2800 CFM

 *Multiply Litres/Second with 2.118 to convert it into CFM
